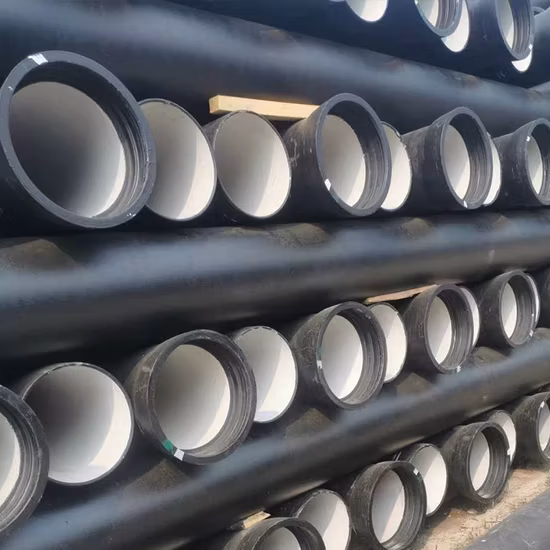

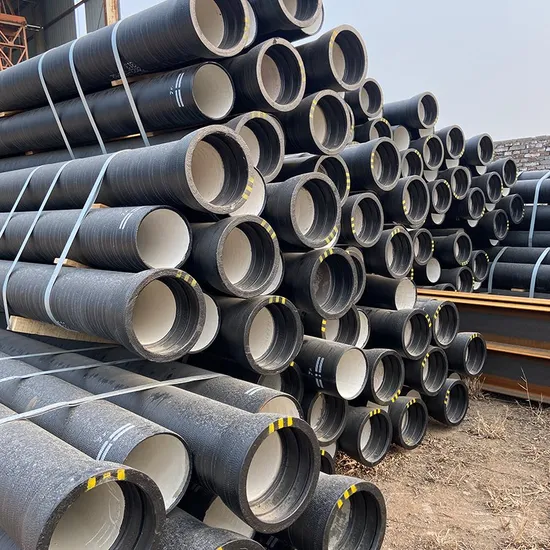

ISO2531 En545 En598 Class K Class C Ductile Cast Iron Pipe

ISO2531 En545 En598 Class K Class C Ductile Cast Iron Pipe

Overview Product DescriptionISO2531 En545 En598 Class K Class C Ductile Cast Iron Pipe Details Images Production Inspect
Overview
Basic Info.
Loading Port Any China Port
Application Water Supply, Sewer Drainage
Delivery Within 30 Days
International Standard ISO2531 BS En545/598
Diameter DN80mm-DN2600mm
Material Ductile Iron
Length Standard 6m
Model Number K7. K8 K9, K10, C Class
HS Code 7303009000
Production Capacity 2000 Ton Per Month
Product Description
Product DescriptionISO2531 En545 En598 Class K Class C Ductile Cast Iron Pipe

1
Type:The T-type Joint Pipe (Push-on)
The K-type Joint Pipe
The Anchoring Joint
The Self-Restrained Joint Pipe
2Standard:ISO2531, EN545, EN598,etc
3Size:DN80-2600
4Thickness:K7. K8 K9, K10, C Class
5Length:5.5 m to 6 m
6Application:Water supply project, drainage, drinking water sewage water, irrigation, water pipeline.
7Certificate:ISO9001, ISO14001,ISO45001,SGS, WRAS
8Internal Coating:a). Portland cement mortar lining
b). Sulphate Resistant cement mortar lining
c). High-Aluminum cement mortar lining
d). Fusion bonded epoxy coating
e). Liquid epoxy painting
f). Black bitumen painting
9External Coating:a). Zinc + bitumen painting
b). Fusion bonded epoxy coating
c). Zinc-aluminum alloy + liquid epoxy painting
10Quality Control:Mechanical Properties TestingChemical Component AnalysisHydraulic pressure Test
11Rubber Gasket:EPDM / SBR / NBR (EN681-1, ISO4633)
12Packing:Pipes which diameter under 300mm are bundled with steel belts, Others in bulk
Details Images

ISO2531 En545 En598 Class K Class C Ductile Cast Iron Pipe

Production Inspection

NANJING PIPEGAS has implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers.Strict quality control covers every procedure, from material sourcing and processing through to testing and packing.Besides, all of our products have been strictly inspected before shipment.

Shipment

ISO2531 En545 En598 Class K Class C Ductile Cast Iron Pipe


FAQ1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
