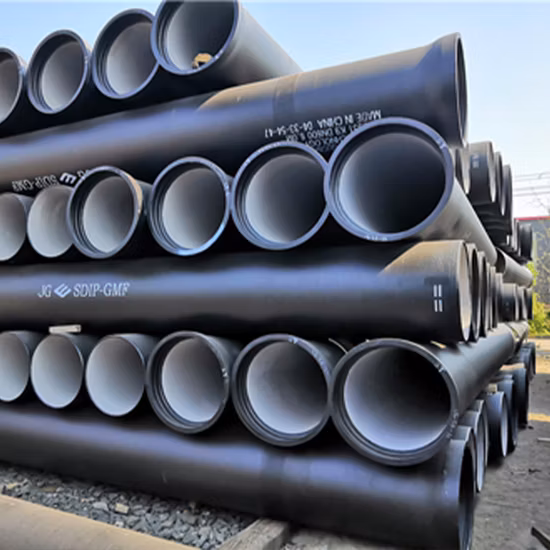

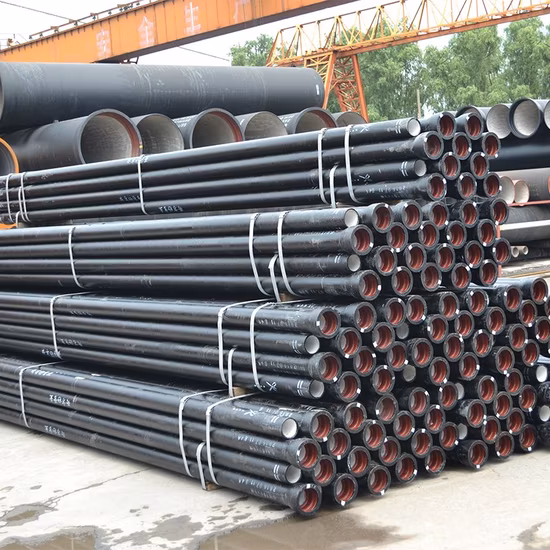

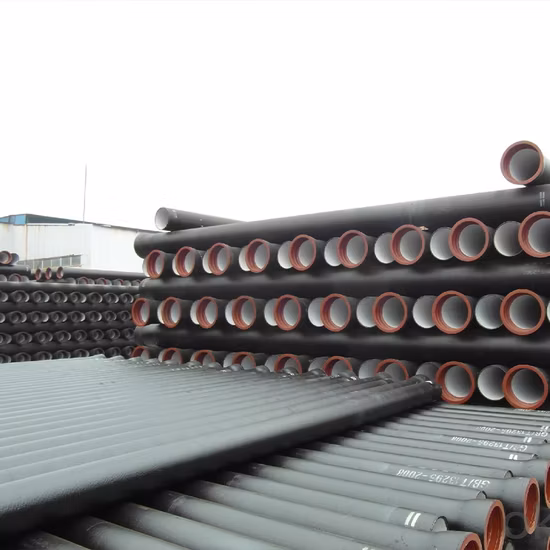

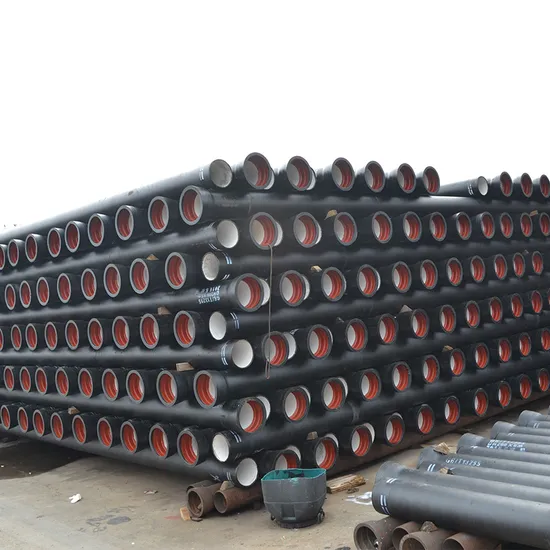

ISO2531 K9 Tyton Ductile Iron Pipe
Basic Info.
Model NO. | K7 K8 K9 C25 C30 C40 DN350 DN450 |
Certification | ISO2531, EN545, EN598, ISO4179, ISO8179 |
Shape | Round |
Customized | Customized |
Gasket Material | EPDM |
Color | Black, Red, Blue or as Request |
Coating | Not Less Than 130g / M2 |
Packing | Bundled with Steel Belts or in Bulk |
Application | Water Supply Project, Drainage, Sewage, Irrigation |
Tensile Strength at Yield MPa | 300/MPa |
Hardness | 230hb |
Tensile Strength | >420/MPa |
Coating of Joint Area | Epoxy Coating |
Effective Length | 6m, Cut to 5.7m. in General, The Pipe Length Is 6m |
Pipe Joint | Push-on Joint(Tyton Joint), K Type Joint, Self-Res |
Standard | ISO2531, En545 , En598. |
Product Name | Ductile Iron Pipe |
Transport Package | Packet with Steel Belt |
Specification | DN80mm~DN2600mm |
Trademark | Lu′ao |
Origin | China |
HS Code | 7306500000 |
Production Capacity | 50000piece/Week |
Product Description
High quality C40 C30 C25 K9 ISO2531 EN545 black ductile cast iron pipes
Packing: Bundled with steel belts or in bulkShipment: In bulk or container
Product name: | Ductile Iron Pipe |
Standard: | ISO2531, EN545 , EN598. |
Pipe class: | K9, K8, C40, C30, C25, etc. |
Pipe joint: | Push-on joint(Tyton joint), K type joint, self-restrained joint |
Effective length: | 6m, cut to 5.7m. In general, the pipe length is 6m for bulk shipment and 5.7m for container shipment. |
Material: | Ductile Cast Iron GGG50 |
Pressure: | PN10, PN16, PN25,PN40 |
Application: | Water supply project, drainage, sewage, irrigation, water pipeline. |
Internal Coating: | a). Portland cement mortar lining |
b). Sulphate Resistant cement mortar lining | |
c). High-Aluminum cement mortar lining | |
d). Fusion bonded epoxy coating | |
e). Liquid epoxy painting | |
f). Black bitumen painting | |
External Coating: | a). zinc+bitumen(70microns) painting |
b). Fusion bonded epoxy coating | |
c). Zinc-aluminum alloy +liquid epoxy painting | |
Packing: | Bundled with steel belts or in bulk |
Inspection | Factory Inspection certificate will be issued for every shipments. |
Note: The coating can also be accordance with customers' requirements. |
Socket ductile iron pipe
The interface is fastened with bolts on the outside, which avoids the defects that the flange of the flexible interface of the
socket is easy to be damaged, and the bolts near the corner are difficult to be fixed. It has the advantages of simple
operation, so it has strong competitiveness in the selection of construction drainage pipes and pipe fittings. The pipe has
good abrasion resistance, heat resistance, corrosion resistance, mechanical and thermal shock resistance, good
weldability and other comprehensive properties.
Flanged ductile iron pipe
Flange connections are generally used for conveying high pressure and high temperature media in pipeline systems.
The flange connection is characterized by strong connectivity, good sealing, and can withstand high temperature, high
pressure and other conditions. The main component of the flange connection is the flange, the flange has a hole in the
center, and the two flanges are usually connected together with bolts to form a tight seal. Flange connection can be
divided into flat welded flange, butt welded flange, threaded flange, lap flange, etc.
